"The Joshua" Floorplan
Container Home Features & Specifications
Built for Rentals & Comfortable Living
Container homes are perfect candidates for ADUs, in-law suites, vacations rentals, vacation homes, and more.
Feature Filled
The Joshua model is one of our most feature filled models we have created to date and remains one of our best selling luxury models.
Featured on Netflix
This model has been featured on an episode of a hit Netflix TV show!
Dimensions
FRAMING & WALLS
INSULATION
ELECTRICAL
FANS & LIGHTS
FLOORING
WINDOWS & DOORS
FULL BATHROOM
LIVING AREA WITH KITCHENETTE
BEDROOM
MEP
EXTERIOR
UPGRADES AVAILABLE
Dimensions
- Exterior – 40 ft (L) x 8 ft (W) x 9 ft 6 in (H) New HC Container
- Bedroom – 10 ft (L) x 7 ft (W) x 8 ft 10 in (H)
- Kitchen / Living Room – 20 ft 9 in (L) x 7 ft (W) x 8 ft 10 in (H)
- Bathroom – 7 ft 1 ½ in (L) x 7 ft (W) x 8 ft 10 in (H)
FRAMING & WALLS
- 2 in x 4 in wood studs on 16 in centers
- White Shiplap Ceiling
- Drywall Walls, Orange Peel Texture
INSULATION
- Closed cell spray foam
- Ceiling – 3 in R21
- Walls – 2 in R13
- Floor – 1 in R7
- These can be modified according to your climate or needs
ELECTRICAL
- Qty 1 – 200amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
- Qty 4 – 110v Duplex Outlets (Living Area)
- Qty 4 – 110v Duplex Outlets (Bedroom Area)
- Qty 2 – 110v Quadplex Outlet (Kitchen Counter)
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
- Qty 1 – 220v Duplex Outlet dedicated on a 30amp breaker for electric stovetop
- Qty 1 – 110v GFCI Duplex (Restroom)
- Qty 2 – 110v GFCI Exterior Outlet
FANS & LIGHTS
- Qty 1 – Hugh 44 inch Black Indoor/Outdoor Ceiling Fan (Living Room)
- Qty 1 – Henry 3 Blade 22.09 Inch Ceiling Fan with Handheld Control and Includes Light Kit (Bedroom)
- Qty 1 – BOJREP Wall lamp with 3-spots, rounded (Bathroom)
- Qty 1 – COTULIN 12.8 Inch Black Metal Plus Glass Flush Mount Ceiling Light (Kitchen)
- Qty 5 – Rodham Black LED Outdoor Wall Lantern Sconce (Exterior)
- Qty 1 – WINGBO Industrial Swing Arm Wall Lamp, Black (Bedroom)
- Qty 3 – David 18″ Art Light Bronze Wall Sconce (Kitchen / Living Room)
FLOORING
- Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
- Vapor Barrier installed underneath floor
WINDOWS & DOORS
- All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
- All Windows & Doors – Wood trim applied around all windows and doors, stained Ground Contact Pressure-Treated Board
- Qty 3 – 72 in Full Glass French Patio Door
- Qty 2 – 4 ft x 4 ft Slider Windows (Bedroom)
- Qty 3 – 3 ft x 2 ft Vertical Slider Window (Kitchen)
- Qty 1 – 2 ft x 2 ft Horizontal Slider Window (Restroom)
- Qty 2 – 24 in Pocket Door

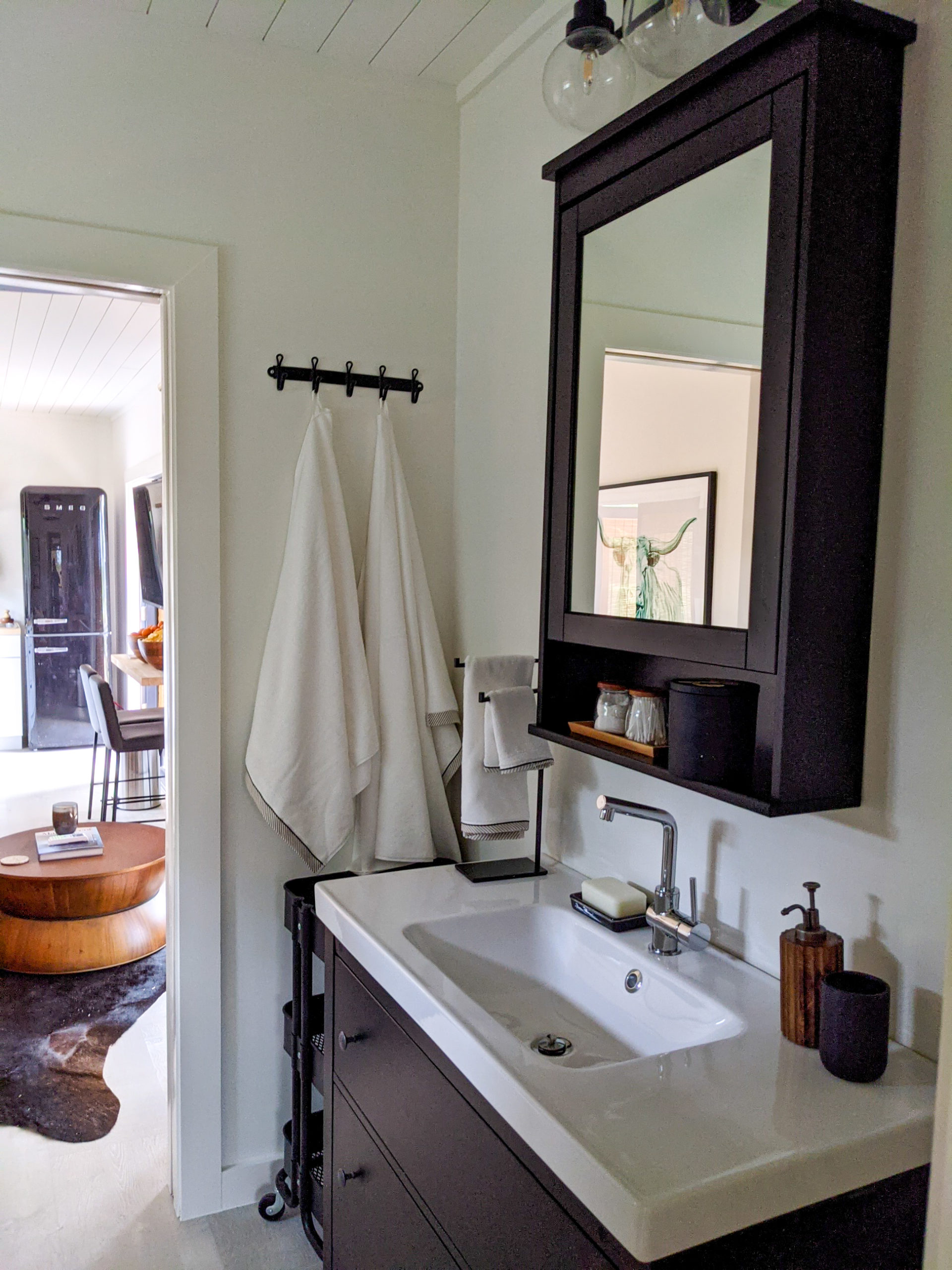

FULL BATHROOM
- Qty 1 – Tile Shower 4 ft (W) x 32 in (L) – Walls: Subway Tile pieces, floor to ceiling tile from the Pan (Black, Grey, White) Pan: Porcelain Mosaic (Black, Grey, White) – Grout (Black, Grey, White)
- Qty 1 – Luxury Shower Head
- Qty 1 – GODMORGON / ODENSVIK Sink cabinet with 2 drawers, high gloss gray/Dalskär faucet, 32 ⅝ in (L) x 19 ¼ in (W) x 25 ¼ in (H)
- Qty 1 – Fine Fixtures Surface Mount 36 in Bathroom Medicine Cabinet, Walnut
- Qty 1 – Standard Toilet 1.6 Gallons
- Qty 1 – Vent Fan with Light

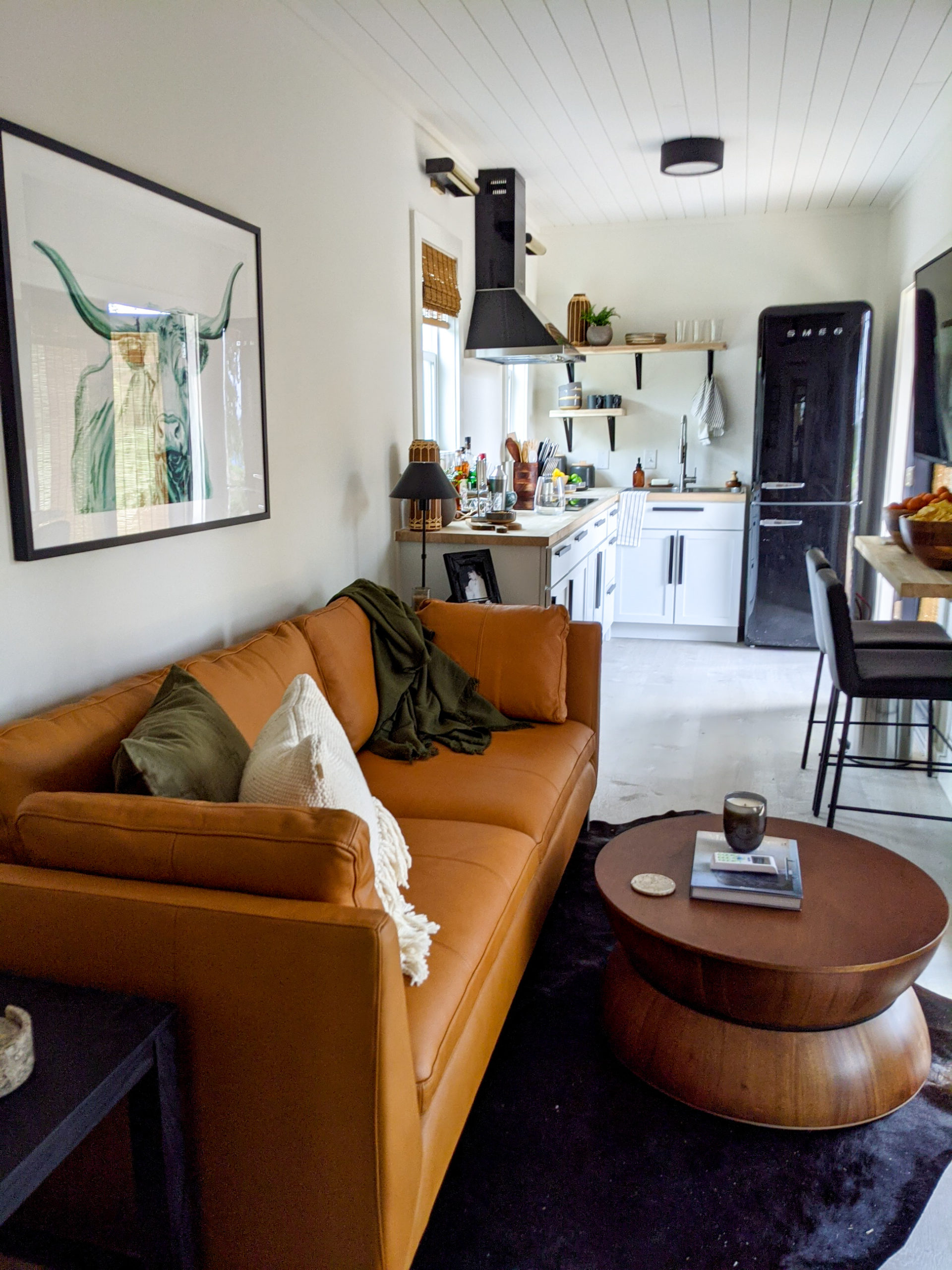

LIVING AREA WITH KITCHENETTE
- Qty 1 – 8 ft L-Shape Shaker Kitchen Base Cabinets with Sealed Butcher Block countertops, Black HACKÅS 11 in cabinet hardware
- Qty 1 – VINSTGIVANDE black Wall mounted range hood, black
- Qty 1 – Kraus KWT310-30 KORE Kitchen Sink Single Bowl, 30 Inch, Drop In, Stainless Steel
- Qty 1 – OWOFAN Kitchen Faucets Commercial Solid Brass Single Handle Single Lever Pull Down Sprayer Spring Kitchen Sink Faucet Matte Black Grifos De Cocina 9009R
- Qty 1 – Drop-in 24 in 4 Burner Electric Radiant Stove Top
- Qty 1 – 4 ft (L) x 20 in (D) x 1.25 in (T) Butcher Block Folding Countertop
- Qty 1 – 12 in Butcher block shelf (Above Sink)
- Qty 1 – 36 in Butcher block shelf (Above Sink)

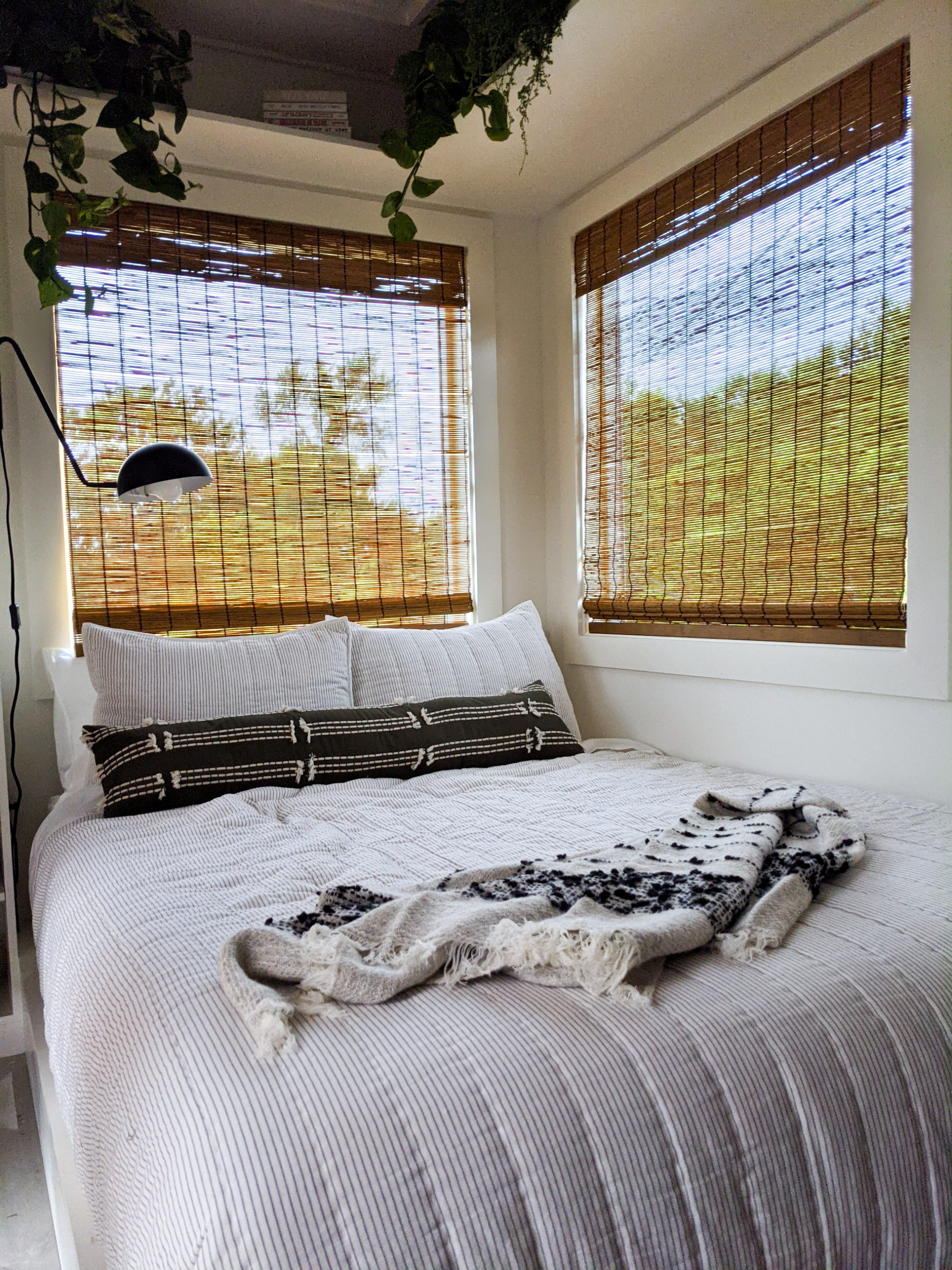

BEDROOM
- Custom Platform Bed Frame
- Custom Cabinets Totaling 10.5 Linear Feet
MEP
- HVAC – Qty 2 – AUX One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU) (One Bedroom, One Living Room)
- Water in – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing
- Greywater – 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup
- Blackwater – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
- Water heater – 13 kW Self-Modulating Rheem Tankless Water heater 2.54 GPM installed under the kitchen cabinets. All PEX plumbing is insulated

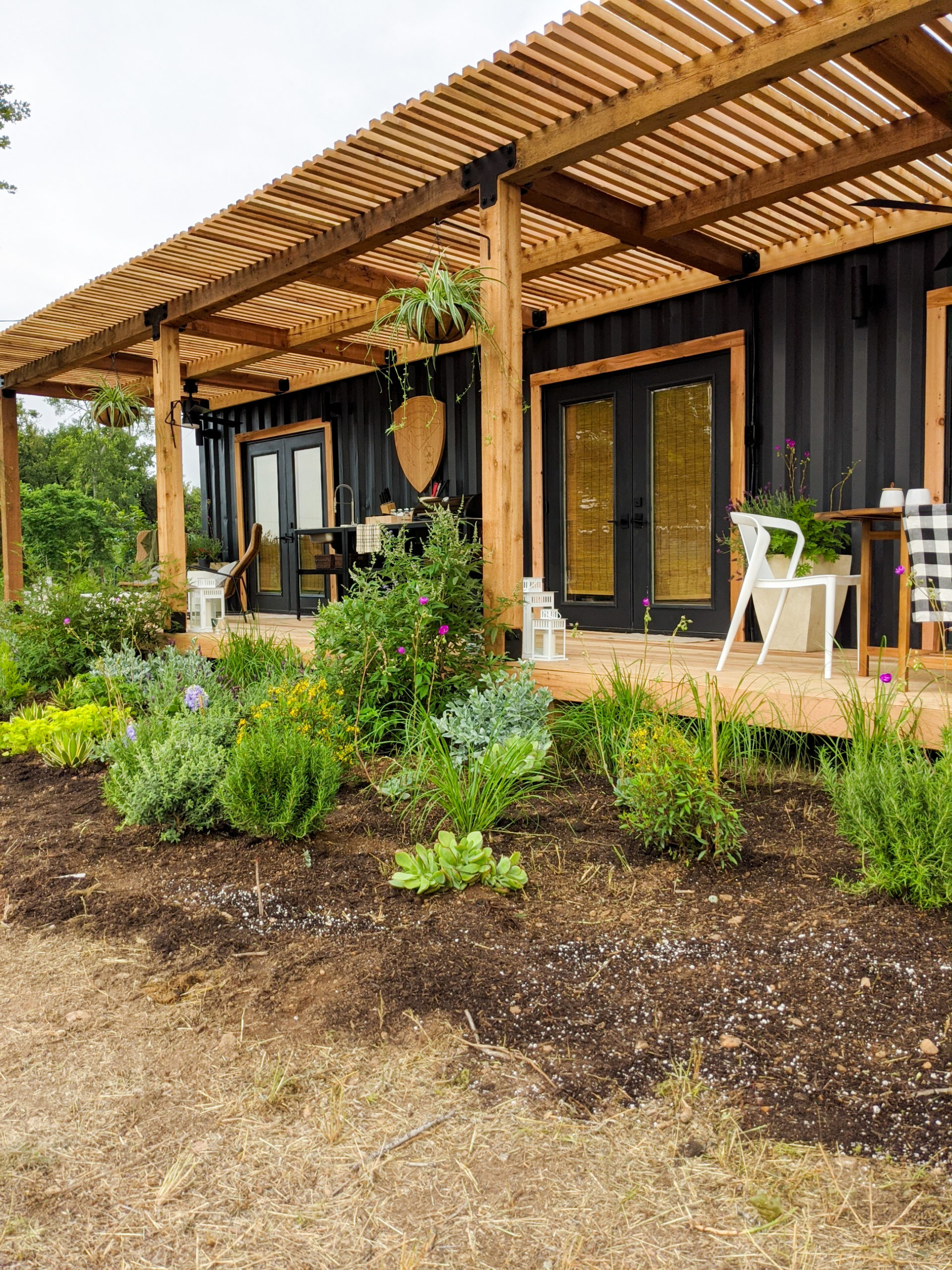

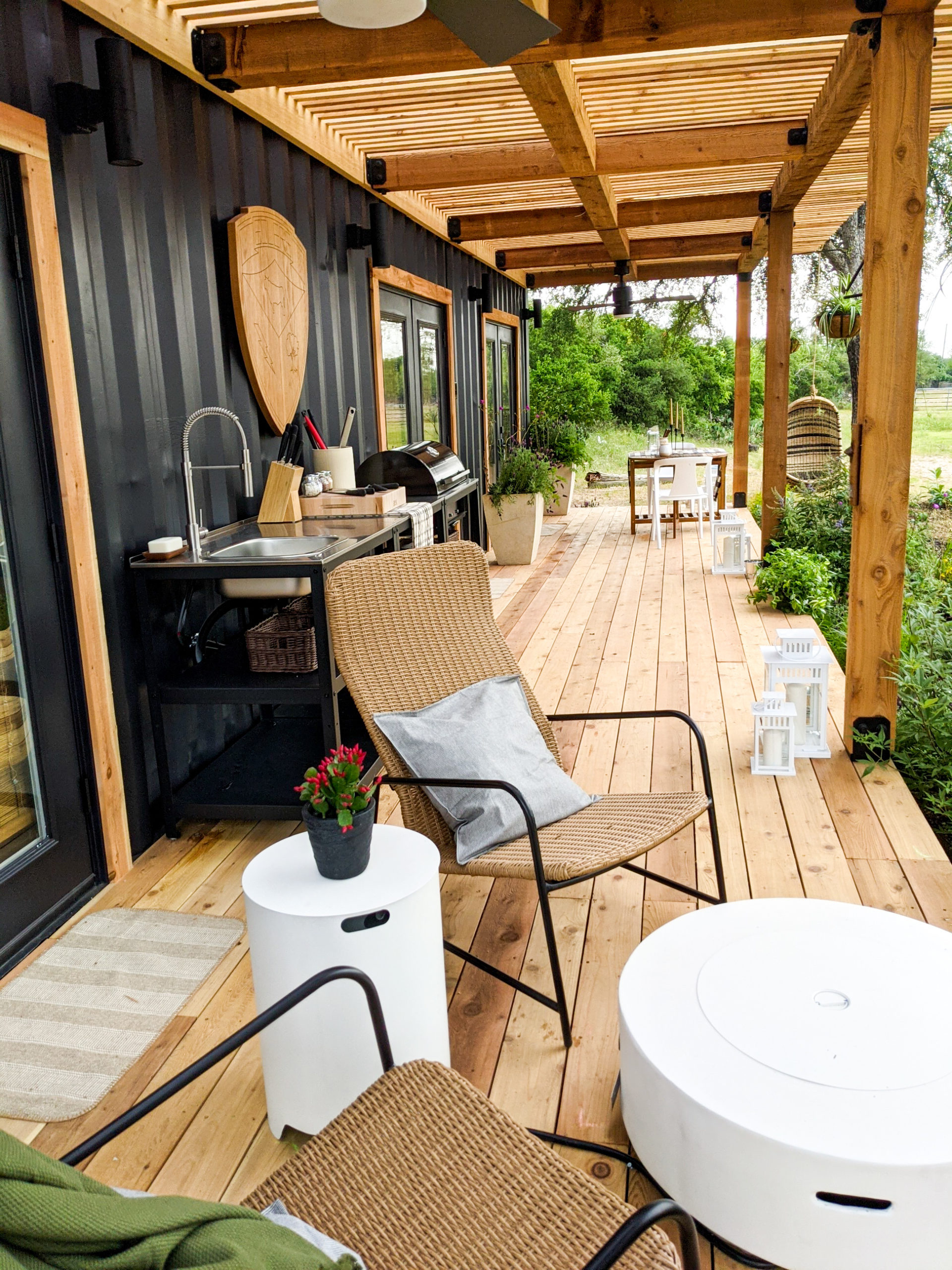

EXTERIOR
- Oil Based Enamel Paint
- Custom color, choose your color
- Remove Rust Spots (Used Container Only)
- Primer Applied
UPGRADES AVAILABLE
- Rooftop Decking (20 or 40 ft w/ Deck)
- Off-grid Water
- Cabin Cladding Finish Options: (Natural, Cedar or Dark)
- Shiplap (White, Rustic or Grey)
- Hardwood Flooring
- Kitchen Counter Tile Backsplash
- Barn Doors
- Custom Upgrades Available Upon Request
