"The Horseshoe" Model

U-shape Container Home
Starting at $175,000

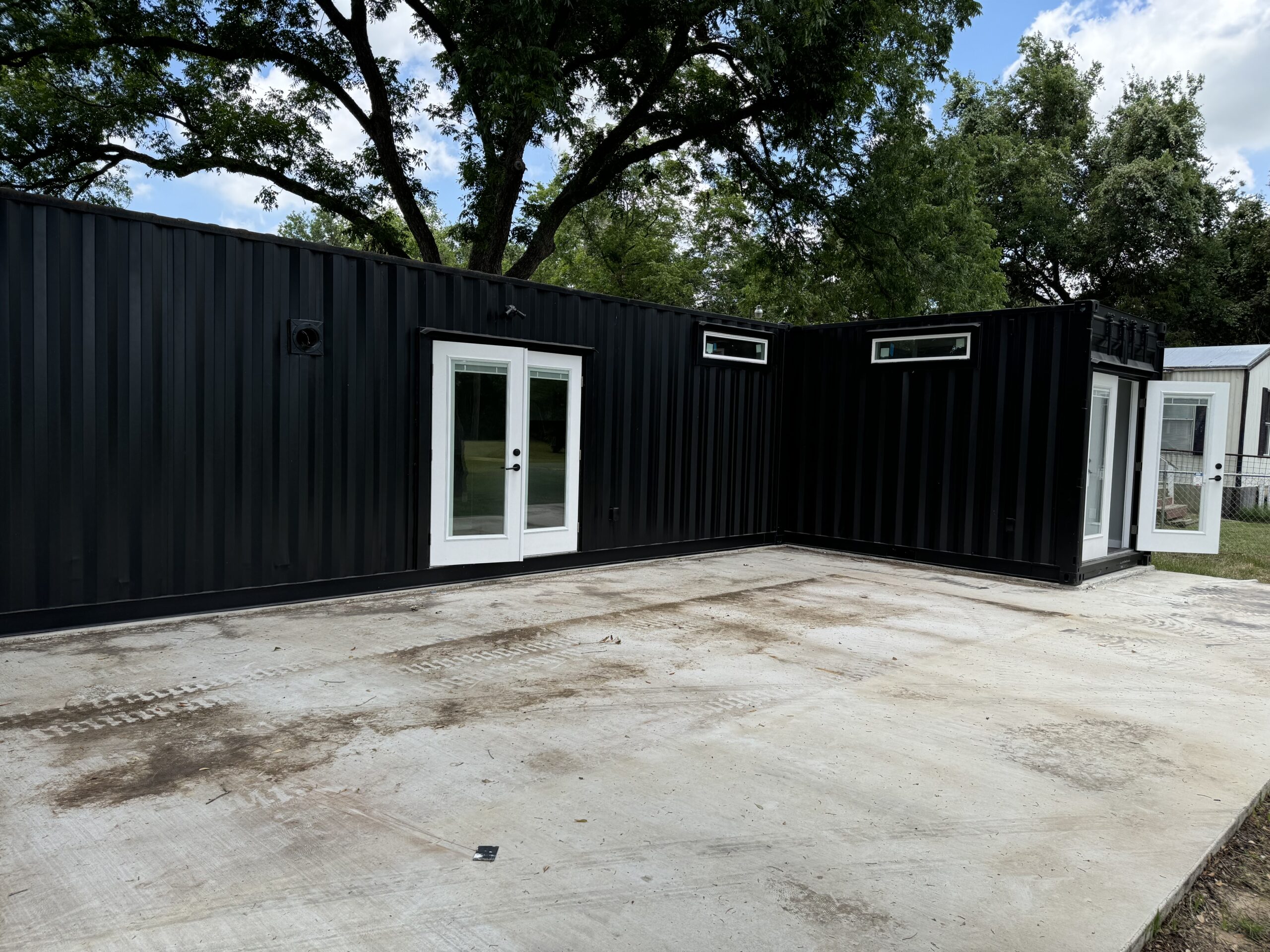

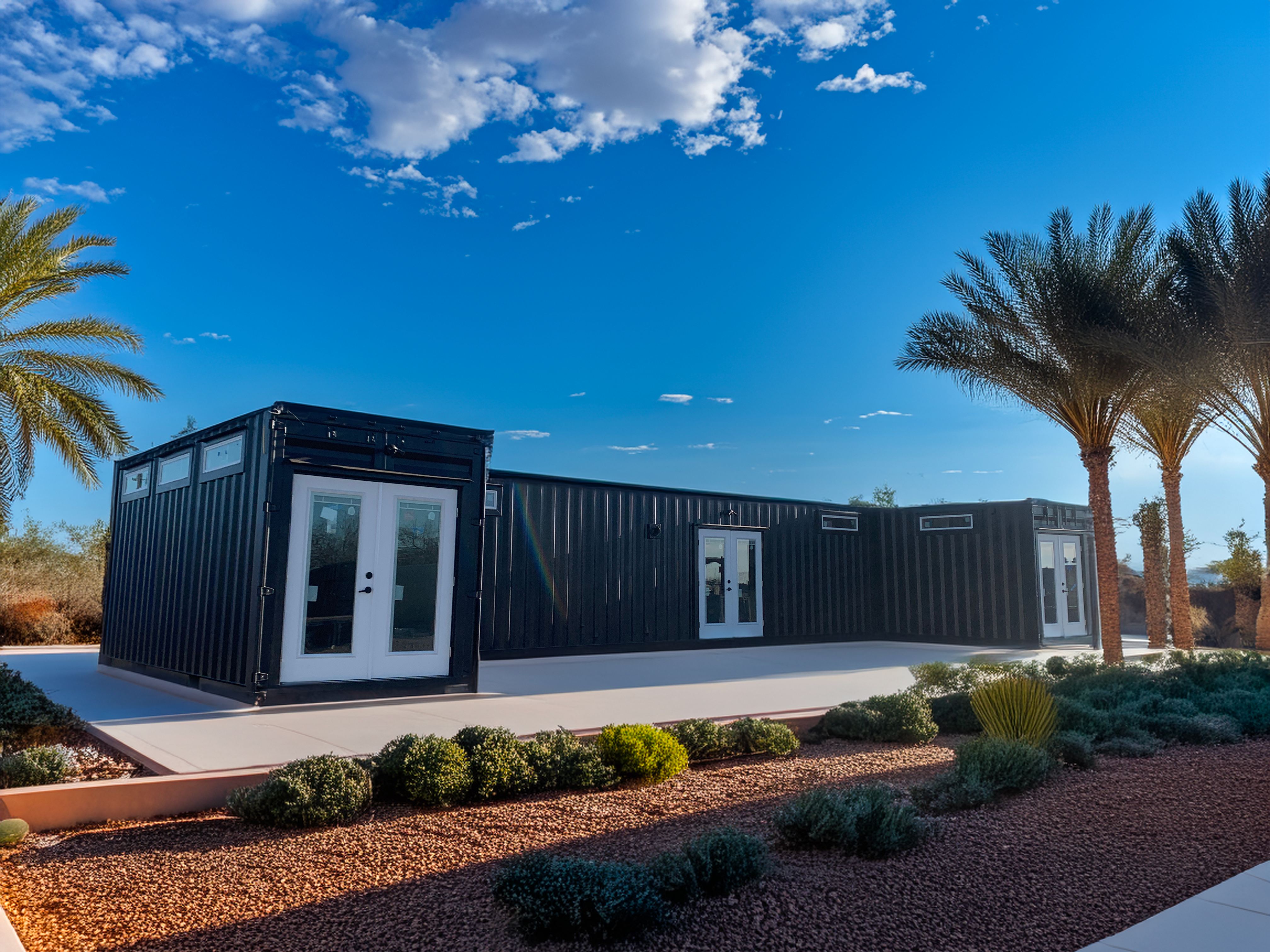

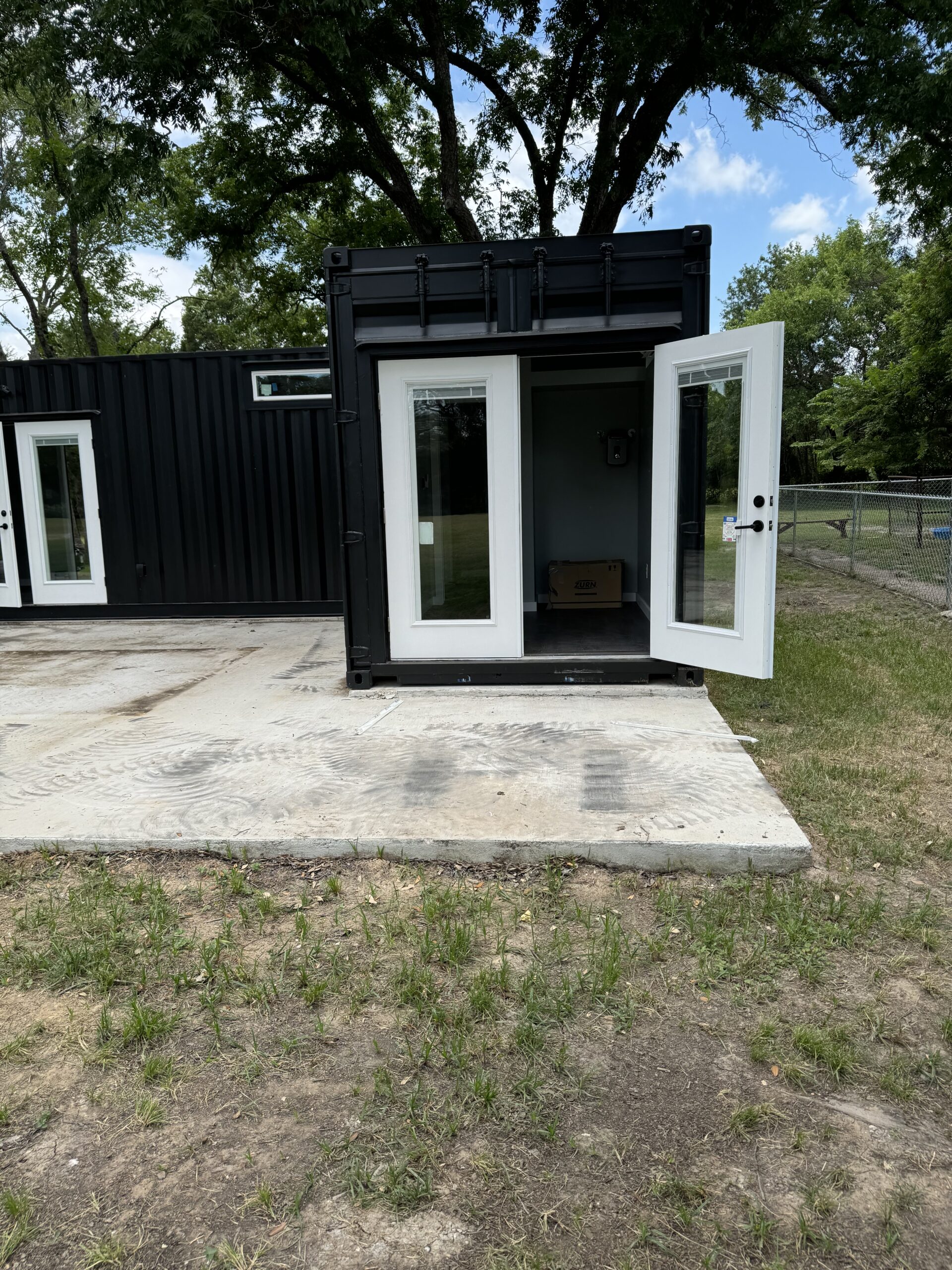

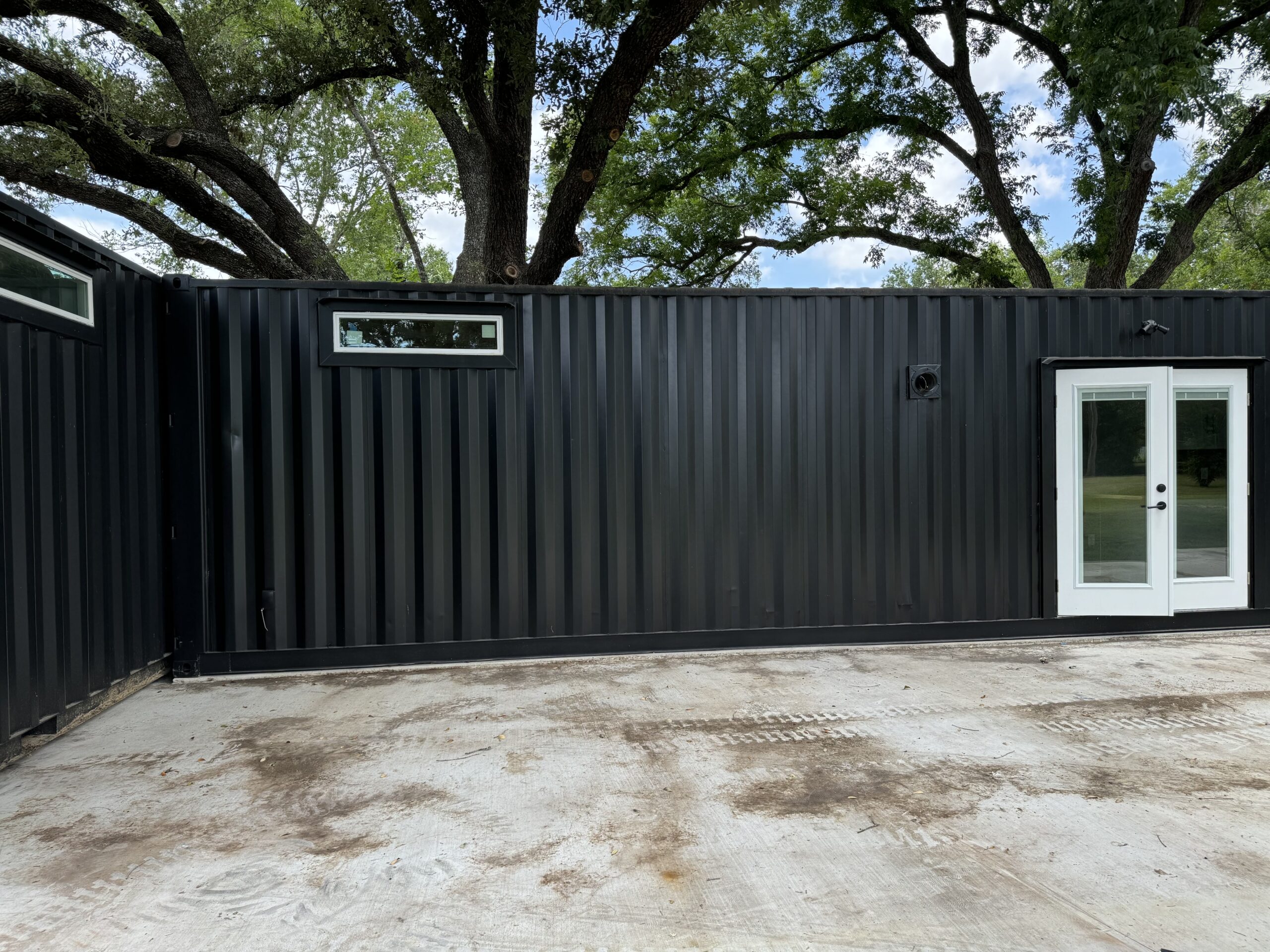

This U-shaped container home is one 40 ft and two 20 ft units combined to create functional wings of the container home and increase square footage.

Features Menu
https://bobscontainers.com/wp-content/uploads/2024/07/IMG_1384.png https://bobscontainers.com/wp-content/uploads/2024/07/IMG_7497_1-scaled.jpg https://bobscontainers.com/wp-content/uploads/2024/07/IMG_7496-scaled.jpg https://bobscontainers.com/wp-content/uploads/2024/07/IMG_7495-scaled.jpg https://bobscontainers.com/wp-content/uploads/2024/07/IMG_7494-scaled.jpg https://bobscontainers.com/wp-content/uploads/2024/07/IMG_7498-scaled.jpg

Customize this Container

  • Shower Upgrade

    • 0 $
Number of Units

U-shape Container Home Floorplan

U-shape Container Home Features & Specs

Increased Square Footage

This model is one 40 ft unit with a 20 ft unit on each side of the build, increasing total square footage.

More Customization

With multiple units being used, you can outfit the unit in more ways than with our single unit builds.

Faster than Traditional Builds

A container home can be made and delivered in a fraction of the time it takes for traditional construction.
Dimensions Framing & Walls Insulation Electrical & Lights Flooring Windows/Doors ½ Bathroom ¾ Bathroom Laundry Living Area w/ Kitchenette MEP Exterior

Dimensions

  • Exterior– 40ft(L) x 8ft(W) x 9ft 6in (H) New High-cube Container & Qty 2: 20ft (L) x 8 ft (W) x 9 ft 6 in (H) New High-cube Container
  • 3⁄4 Bath – 8 ft (L) x 4.5 ft (W) x 9.5 ft (H)
  • 1⁄2 Bath – 4 ft (L) x 4 ft (W) x 9.5 ft (H)
  • Bedroom one – 11 ft (L) x 7 ft (W) x 9.5 ft (H)
  • Bedroom two – 10 ft (L) x 7 ft (W) x 9.5 ft (H)
  • Living – 13.5 ft (L) x 7 ft (W) x 9. ft (H)
  • Kitchen – 13.5 ft (L) x 7 ft (W) x 9.5 ft (H)

Framing & Walls

  • 2 in x 4 in wood studs on 16 in centers
  • Drywall, Orange Peel Texture

Insulation

  • Closed cell spray foam
  • Ceiling – 3 in R21
  • Walls – 2 in R13
  • Floor – 1 in R7
  • These can be modified according to your climate or needs

Electrical & Lights

  • Qty 1 – 200amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
  • Qty 1 – 125amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
  • Qty 4 – 110v Duplex Outlets (Living Area)
  • Qty 4 – 110v Duplex Outlets (Bedroom One)
  • Qty 4 – 110v Duplex Outlets (Bedroom Two)
  • Qty 6 – 110v Duplex Outlets
  • Qty 2 – 110v GFCI Duplex Outlets (Kitchen Counter)
  • Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
  • Qty 1 – 220v Duplex Outlet dedicated on a 30amp breaker for electric stovetop
  • Qty 2 – 110v GFCI Duplex Outlet (One Per Bathroom)
  • Qty 2 – 110v Exterior Outlet
  • Qty 6 – 13 in Brushed Nickel Low Profile Lights
  • Qty 6 – Recessed lights
  • Qty 2 – 44 in LED Brushed Nickel Ceiling Fan with Interior Light (One per Bedroom)
  • Qty 2 – Gray Outdoor Flood Exterior Light

Flooring

  • Wood vinyl flooring. Color options: light grey, light brown, or dark brown
  • Vapor Barrier installed underneath floor

Windows/Doors

  • All Windows – Low-e Protection Glass, White Vinyl
  • Qty 2 – 2 ft x 2 ft Horizontal Slider Window (One Per Bathroom)
  • Qty 1 – 36 in Personal Door (Living Room)
  • Qty 1 – 6 ft x 6 ft x 80 in 15-Lite Grille French Patio Door (Living Room)
  • Qty 2 – 6 ft x 6 ft x 80 in 15-Lite Grille French Patio Door (Installed Behind the Cargo Doors)
  • Qty 5 – 24 in x 80 in Pocket Doors (1 Bedroom, 1 Bathroom)
  • Qty 1 – 72 in x 80 in French Door
  • Qty4–4ftx1ft Window
  • Qty 1 – 24″ barn door with rollers

½ Bathroom

  • Qty 1 – 1.5 ft Vanity Sink with Faucet
  • Qty 1 – American Standard Toilet 1.6 Gallons
  • Qty 1 – Vent Fan with Light

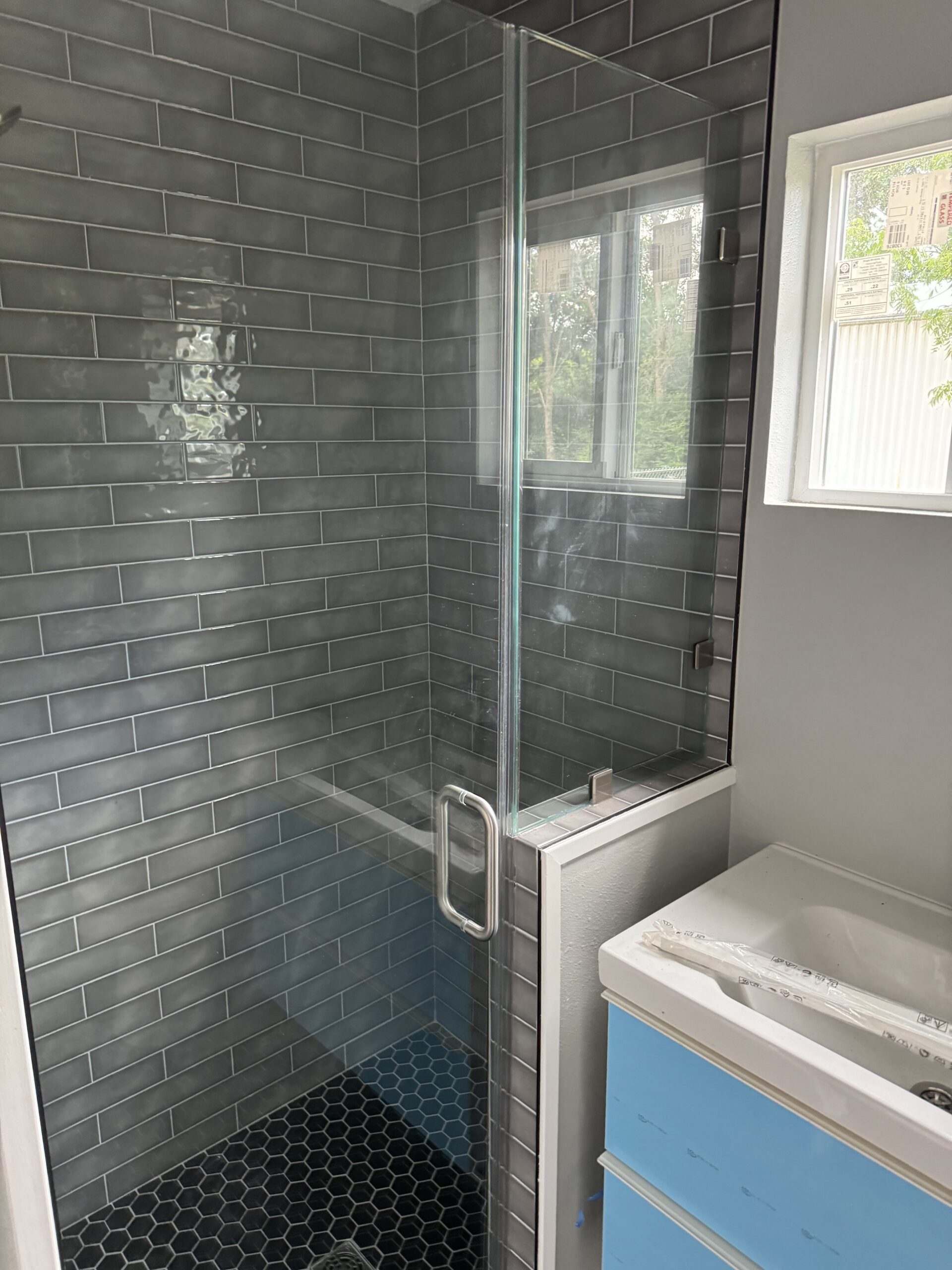

¾ Bathroom

  • Qty 1 – 3 ft x 3 ft, Wall Surround Shower Stall
  • Qty 1 – 1.5 ft Vanity Sink with Faucet
  • Qty 1 – American Standard Toilet 1.6 Gallons
  • Qty 1 – Vent Fan with Light

Laundry

Connections for washer/dryer including:

  • 220V Outlet
  • Washer Outlet Box
  • 2” PVC Connection to Main Water Outlet

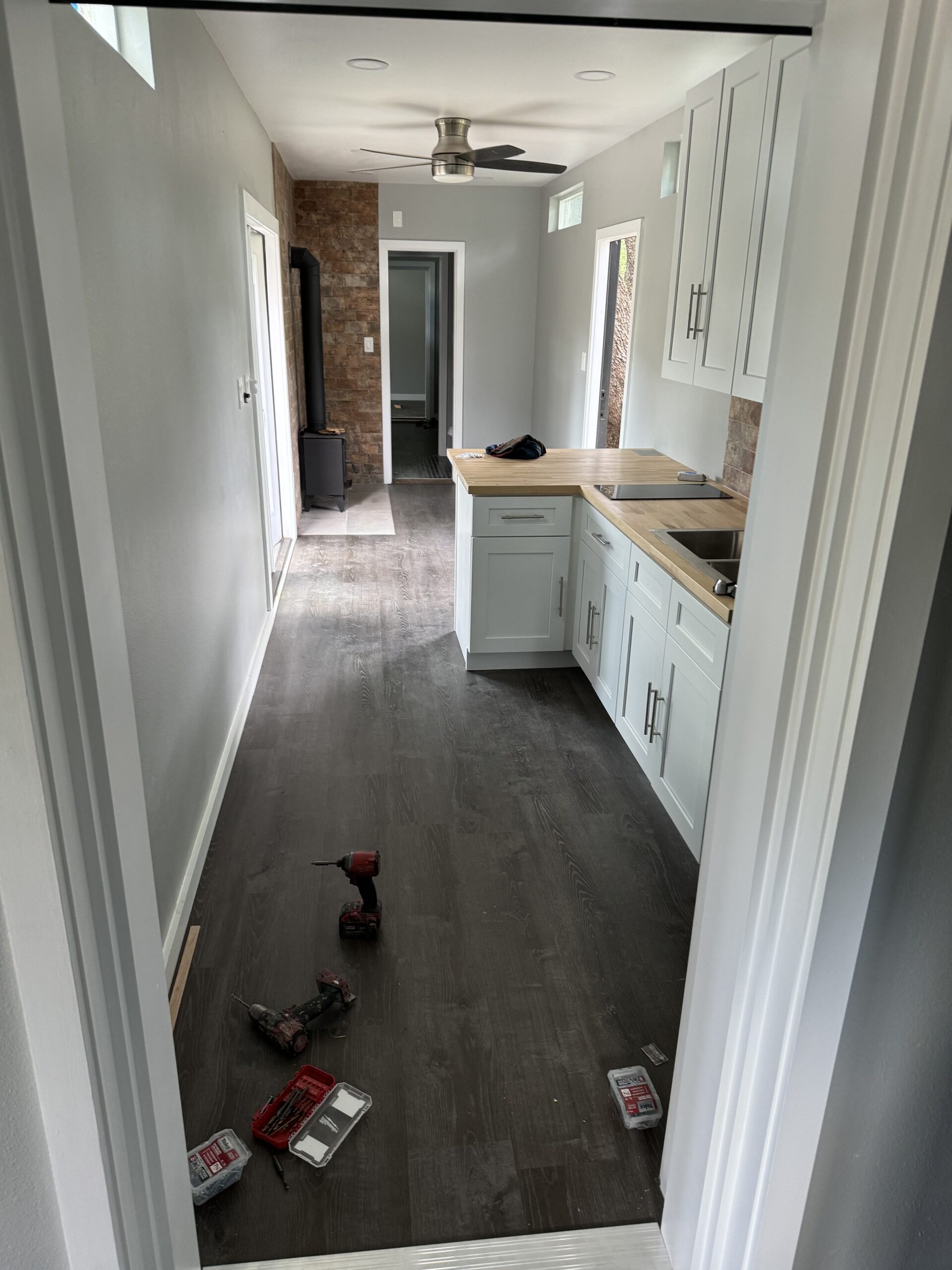

Living Area w/ Kitchenette

  • Qty 1 – 9 ft L-Shape Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
  • Qty 1 – 18 in (L) x 18 in (W) x 18 in (H) Single Bay Sink with Single- Handle Pull-Down Sprayer Kitchen Faucet, Stainless Steel
  • Qty 1 – Drop-in Two Burner Electric Radiant Stove Top

MEP

  • HVAC – Qty 3 – One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
  • Water in – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing (one per container)
  • Greywater – 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup (one per container)
  • Blackwater – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.(one per container)
  • Water heater – 13 kW Self-Modulating Rheem Tankless Water heater 2.54 GPM installed under the kitchen cabinets. All PEX plumbing is insulated. (one per container)

Exterior

  • Oil Based Enamel Paint
  • Custom color, choose your color at https://www.behr.com/consumer/
